TPC’s Design and Production Process

TPC produces control panels and systems from your design or develops a design based upon a performance specification or conceptual design. Our staff can provide all levels of design assistance including turnkey control design.

All in-house design is done in AutoCAD® format.  Submittal, “As-built” and Operation & Maintenance Manual documentation can be supplied in electronic format and /or hard copy as required.

TPC’s staff can also provide PLC, OIT, data communication and HMI / SCADA system programming with on-site commissioning and continuing field service support.

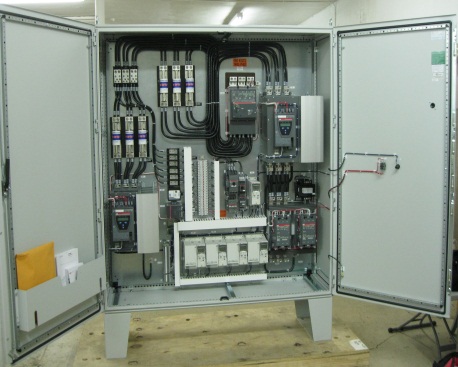

Factory- designed and factory-integrated using best practices for efficient, trouble-free operation, TPC can provide a complete panel or system tailored to your specific requirements using:

  • Standard or custom enclosures in a variety of types and styles to provide site-appropriate protection and accessibility that meets the required standards
  • Enclosure interior thermal management practices to maximize the efficiency and life cycle of the electrical components
  • High and low voltage wiring in one common enclosure (if desired), with proper circuit separation rules applied
  • Fine stranded, low voltage, color coded and numbered wiring that corresponds with the electrical schematic
  • High quality components of reputable manufacturers
  • Custom, computer generated engraved nameplates and graphics
  • Laminated component I.D. labeling
  • Appropriate U.L. labeling
